Apogee Duet 2 Soundcard Interfaces Sound Card

Mô tả chi tiết Thông số kỹ thuật

ĐẶC ĐIỂM NỔI BẬT SẢN PHẨM

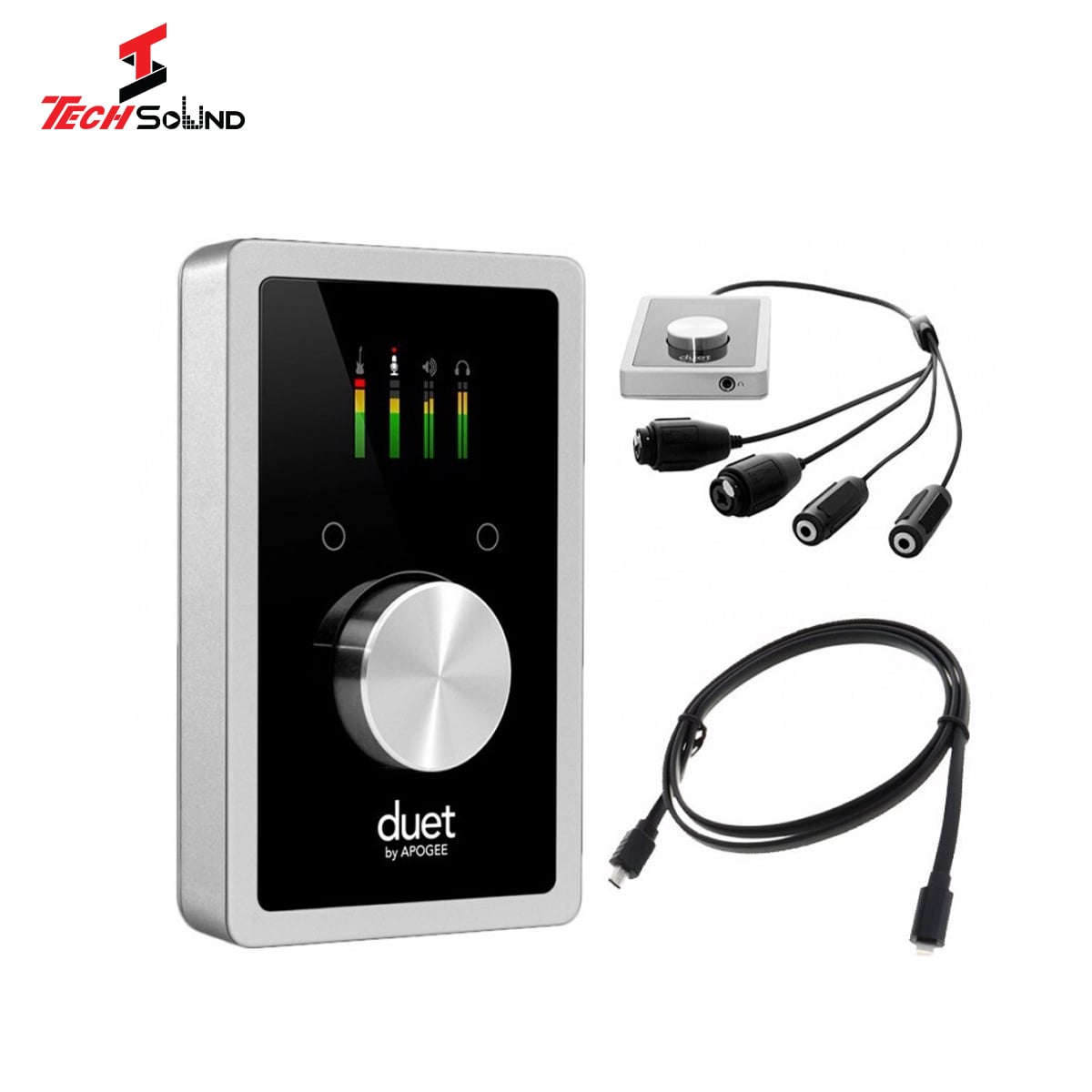

Apogee Duet 2 The Most Popular Portable Audio Interface for Professional Quality Recording

Play the Duet Overview Video

Apogee Duet for iPad & Mac from Apogee Electronics on Vimeo.

Apogee Duet Highlights

duet2

Xem thêm

Thông số kỹ thuật

Features:

USB 2.0 audio interface for Mac, PC or iOS

2 analog inputs:

Combination Line (balanced +20dBu max)

Mic/Instrument (+20dBu/+14dBu max)

2 Microphone preamps with up to 75dB of gain

Selectable 48v phantom power, Soft Limit and phase invert

4 analog outputs:

2 Balanced line outputs, +20 dBu maximum output level

1 Independent 1/4” stereo headphone output

A/D and D/A conversion at 24-bit/192kHz

MIDI connection (Core MIDI compatible; USB-A type connector)

Controller knob selects function, sets input and output level

Top panel high resolution OLED display

Two assignable top panel touch pads to control:

Mute speakers, headphones or all outputs

Dim speakers, headphones or all outputs

Sum to mono speakers, headphones or all outputs

Assign headphones to outputs 1-2, 3-4 or low latency mixer

Clear Meters

Apogee’s Maestro app (included in Mac and PC installer) for advanced control

Available for free from the App store, if connecting to iOS (cable sold separately)

Legendary Apogee sound quality

Designed in California – Made in the U.S.A.

Mic Pre:

EIN: 128dB (un-weighted) @ 60dB, 150Ohm input

Max input level: +20dBu

Input impedance: 3KOhm

Hi-Z:

Max input level 14 dBu

Input impedance: >2MOhm

A/D conversion:

Max input level (+4dBu ref): +20dBu

Max input level (-10dBV ref): +6dBV

Input impedance: 5KOhm

Freq resp 20 Hz -20Khz: > +/-0.2dB (@44.1Khz)

Rel. THD + N: -106dB (@ 96Khz)

Dyn. Range: 114dB (A-weighted)

D/A conversion:

Max output level (+4dBu ref): +20dBu

Max output level (-10dBV ref): +6dBV

Line output impedance: 90 Ohm

Max output level headphones: 19dBu

HPH output impedance 30 Ohm.

Freq resp 20Hz -20 Khz: > +/- 0.05dB (@44.1Khz)

Rel. THD+N : -113dB (@96Khz)

Xem thêm

Thông số kỹ thuật

Features:

USB 2.0 audio interface for Mac, PC or iOS

2 analog inputs:

Combination Line (balanced +20dBu max)

Mic/Instrument (+20dBu/+14dBu max)

2 Microphone preamps with up to 75dB of gain

Selectable 48v phantom power, Soft Limit and phase invert

4 analog outputs:

2 Balanced line outputs, +20 dBu maximum output level

1 Independent 1/4” stereo headphone output

A/D and D/A conversion at 24-bit/192kHz

MIDI connection (Core MIDI compatible; USB-A type connector)

Controller knob selects function, sets input and output level

Top panel high resolution OLED display

Two assignable top panel touch pads to control:

Mute speakers, headphones or all outputs

Dim speakers, headphones or all outputs

Sum to mono speakers, headphones or all outputs

Assign headphones to outputs 1-2, 3-4 or low latency mixer

Clear Meters

Apogee’s Maestro app (included in Mac and PC installer) for advanced control

Available for free from the App store, if connecting to iOS (cable sold separately)

Legendary Apogee sound quality

Designed in California – Made in the U.S.A.

Mic Pre:

EIN: 128dB (un-weighted) @ 60dB, 150Ohm input

Max input level: +20dBu

Input impedance: 3KOhm

Hi-Z:

Max input level 14 dBu

Input impedance: >2MOhm

A/D conversion:

Max input level (+4dBu ref): +20dBu

Max input level (-10dBV ref): +6dBV

Input impedance: 5KOhm

Freq resp 20 Hz -20Khz: > +/-0.2dB (@44.1Khz)

Rel. THD + N: -106dB (@ 96Khz)

Dyn. Range: 114dB (A-weighted)

D/A conversion:

Max output level (+4dBu ref): +20dBu

Max output level (-10dBV ref): +6dBV

Line output impedance: 90 Ohm

Max output level headphones: 19dBu

HPH output impedance 30 Ohm.

Freq resp 20Hz -20 Khz: > +/- 0.05dB (@44.1Khz)

Rel. THD+N : -113dB (@96Khz)

Apogee Duet 2 Soundcard (MAC & IOS)

Giá bán:

14,500,000₫ (Bộ)
